Taw qhia

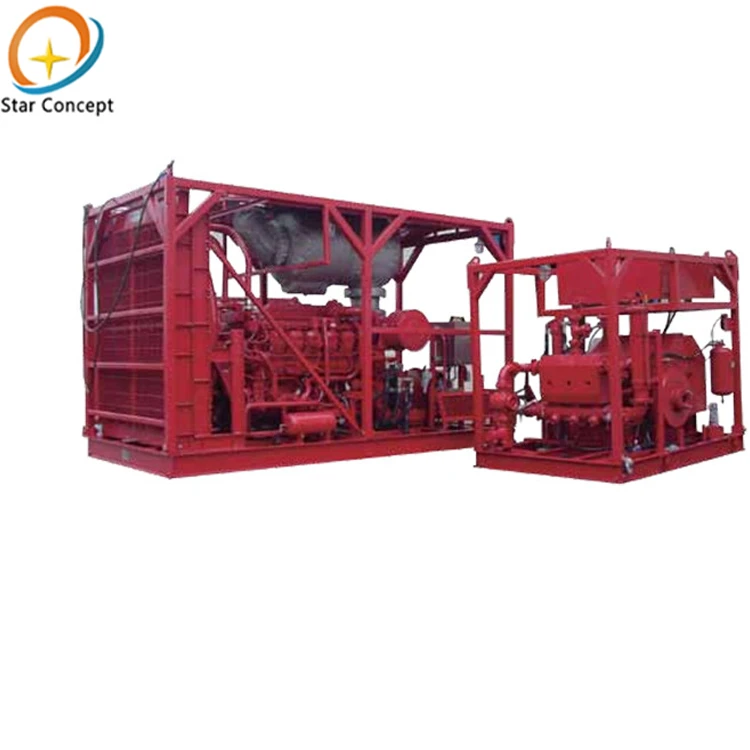

Fracturing Pump Skid yog ib qho skid - mounted fracturing unit uas integrates lub cav, kis tau tus mob, thiab plunger twj tso kua mis rau siab - cov kua xau nyob rau hauv cov roj thiab roj zoo fracturing ua hauj lwm. Nws yog tsim rau cov tuam txhab kev pabcuam roj thiab roj, nrog rau cov khoom siv leasing thiab engineering cog lus kev lag luam.
Parameters thiab Specifications
|
Yam khoom |
Specifications |
|
Rated tso zis Hydraulic Horsepower |
2000 HP |
|
Zuag qhia tag nrho Dimensions (mm) |
Luas 8000 (L) × 2600 (W) × 3250 (H) |
|
Qhov hnyav |
Tsawg dua los yog sib npaug li 15 t |
|
Cav Option 1 |
CAT 3512B diesel cav, 2250 BHP @ 1900 RPM |
|
Cav Option 2 |
MTU/DDC 12V4000 (T1237K39) diesel cav, 2250 BHP @ 1900 RPM |
|
Kis kab mob |
Allison S9820 hydraulic- tshuab kis tau tus mob |
|
Qhov siab tshaj plaws input zog |
1678 kW (2250 л. |
|
Maximum Torque |
8271nm ua |
|
Maximum Input Ceev |
2100 RPM |
|
Gear Ratios |
kuv=3.750:1; II=2.694:1; III =2.201:1; IV=1.766:1; V{{8}:1; VI=1.269:1; VII=1.000:1; VIII{14}}: 1 |
|
Triplex Plunger Twj |
TPA 2000 or SPM TWS 2250 |
|
Cov zis siab tshaj plaws |
1490 kW (2000 HP) |
|
Stroke Length |
8" |
|
Twj iav piv |
6.353:1 |
|
Plunger |
4" |
4-1/2" |
5" |
6" |
|
Max. ua hauj lwm siab |
105 MPa |
99.4MPa ua |
80.5 MPa |
56 MPa ua |
|
Max. tso zis tawm |
1.478 m/min³ |
1.871 m/min³ |
2.309 m / min³ |
3.321 m / min³ |
|
Hom |
YLQ600MA1 |
YLT600MA1 |
||||
|
Hom kev ua haujlwm |
Tau tshaj cov kev ua haujlwm xws li kev txhaj tshuaj txuas ntxiv, kev txhaj tshuaj dej, lub teeb roj txhaj tshuaj, dej ntws tawm, kev ntsuas siab. |
|||||
|
Cav |
Cummins X15/CAT15/weichai WP13G530E310 |
|||||
|
Kev sib kis |
Allision 4700OFS / Winstar BY670 |
|||||
|
Plunger twj tso kua mis |
SYTP600/SPM600 |
|||||
|
Plunger txoj kab uas hla, nti |
2.5 |
2.75 |
3 |
3.5 |
4 |
4.5 |
|
Max ua haujlwm siab |
21 600 psi |
17851 psi |
15 000psi |
11 020 psi |
8 438psi |
6 667psi |
|
Max ntws tus nqi, gpm |
174 |
211 |
251 |
342 |
446 |
565 |
|
Zuag qhia tag nrho dimension, mm |
7400*2500*3100 |
11500*2550*4000 |
||||
|
Total weight, ib |
27558 |
59525 |
||||
Nta
Integrated & Compact Design:Cov qauv yooj yim rau kev thauj mus los sai thiab nrawm ntawm - qhov chaw xa tawm.
High Power Output:Tshaj 2000HP, boosting kev tsim kho efficiency.
Txhim khu kev ntseeg tau:Cov khoom siv txhawb nqa nce load-kev coj tus kheej los ntawm 7% thiab ua kom lub neej kawg ntawm 30%, txo qis qis.
Smart Control System:Kev kuaj mob tsis raug, kev saib xyuas tej thaj chaw deb, thiab kev ceeb toom kev saib xyuas kom txhim kho kev nyab xeeb thiab kev tswj xyuas.
Adaptable rau Harsh Environments:Ua haujlwm ruaj khov hauv qhov kub ntawm -40℃txog +50 degree, zoo tagnrho rau cov suab puam thiab ntug dej hiav txwv.
Cov ntawv thov tseem ceeb
Roj thiab roj zoo tawg ua haujlwm
Acidizing kev ua haujlwm
Kev txhaj tshuaj dej
Kev ntsuas siab
Kev xa khoom tsis tu ncua thiab kev kho mob zoo
Kev kho kom haum
Powertrain:Yeem CAT, MTU diesel xyaw lossis hluav taws xob tsav tshuab.
Pump xaiv:Ntau yam qauv ntawm peb - lub tog raj kheej triplex twj tso kua mis muaj.
Siab thiab Flow:Kev ua haujlwm siab thiab kev hloov pauv tsis tau raug kho raws li kev ua haujlwm.
Kev teeb tsa:Txhawb skid-mounted, tsheb-mounted, lossis semi-trailer structures.
Tswj System:Txhawb kev tswj hwm hauv zos, kev tswj chaw taws teeb, lossis kev saib xyuas ntse.
Environmental Adaptability:Customized versions muaj rau cov kev khiav hauj lwm tshwj xeeb xws li siab - qhov siab, siab - kub, thiab corrosion- daim ntaub ntawv tiv taus.
Peb Cov Kev Pabcuam
Ua ntej- muag:Muab kev soj ntsuam kev ua haujlwm thiab cov lus qhia xaiv cov khoom siv; Txhawb customized tsim thiab daws optimization.
Hauv - muag:Muab cov lus qhia txog kev nce qib ntau lawm thiab cov ntawv ceeb toom zoo; Muab kev taw qhia installation thiab commissioning txhawb.
Tom qab- muag:Muab kev pab txhawb nqa ntev - lub sij hawm thiab kev cob qhia ua haujlwm
FAQ
Q: Dab tsi yog qhov siab tshaj plaws ua haujlwm ntawm cov khoom siv?
A: Nyob ntawm qhov loj ntawm lub plunger, qhov siab tshaj plaws ua haujlwm siab tuaj yeem ncav cuag tshaj 100MPa.
Q: Cov khoom siv ua haujlwm zoo li cas rau?
A: Haum rau ntau yam roj thiab roj ua haujlwm xws li tawg, acidizing, dej txhaj tshuaj, thiab ntsuas siab.
Q: Nws puas txhawb kev tsim kho?
A: Nws txhawb kev hloov kho hauv ntau yam, suav nrog lub cav, hom twj tso kua mis, tswj qhov system, thiab txoj kev teeb tsa.
Q: Puas yog cov cuab yeej tsim nyog rau ib puag ncig huab cua?
A: Nws tuaj yeem ua haujlwm hauv ib puag ncig xws li -40℃mus rau +50 degree, haum rau ntau yam kev ua haujlwm nyuaj.
Q: Cov cuab yeej zoo li cas tau lav?
A: Cov cuab yeej ua tiav kev sim thiab ntau yam kev soj ntsuam zoo ua ntej tawm hauv lub hoobkas.
