Taw qhia

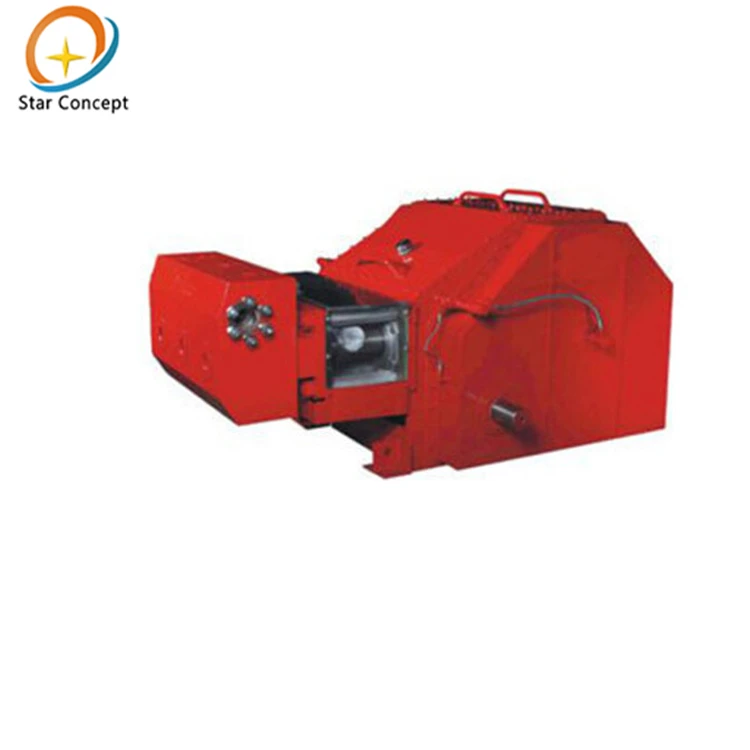

Lub TWS 2250 fracturing thiab cementing twj tso kua mis yog lub siab - lub zog kab rov tav peb - lub tog raj kheej plunger twj siv rau cementing, fracturing, thiab acidizing kev ua haujlwm hauv cov roj thiab roj qhov dej.
Parameters thiab Specifications
|
Pump Model |
TWS 2250 cementing fracturing pump |
|
Qhov siab tshaj plaws input zog |
2250HP (1678KW) TSI |
|
Maximum Txuas Qws Load |
229305 Ib |
|
Mob stroke |
8 '' (203.2mm) |
|
Tsav qauv |
Muab ob npaug rau lub tog raj kheej iav kis tau tus mob |
|
Gear ratio ntawm txo cov iav |
6.353:1 |
|
Dimension |
1292 × 1366 × 607mm |
|
Length X Dav X Qhov siab |
2230 * 1462 * 1105 hli |
|
Qhov hnyav |
6 250kg |
Nta
2250HP lub zog tso zis:Ua tau raws li qhov xav tau ntawm kev ua haujlwm siab - xws li tawg thiab cementing.
Peb -lub tog raj kheej tsim:Flow pulsation tswj tsis pub dhau ± 8%, kom ntseeg tau tias kev ua haujlwm ruaj khov dua.
Siab - muaj peev xwm:Siab siab tshaj plaws kwv yees li 131 MPa (kwv yees li 19,000 psi).
Corrosion-resistant kua kawg tsim:Haum rau cov xov xwm nyuaj xws li acids thiab slurries.
Cov ntawv thov tseem ceeb
Hydraulic fracturing ua hauj lwm hauv cov roj thiab roj qhov dej
Cementing
Acidizing thiab ntau lawm txhim khu kev ua haujlwm
Siab -kev thauj cov kua dej thiab cov kab ke
Kev ntsuas siab thiab kev pabcuam hauv qhov chaw zoo
Kev kho kom haum
Customized plunger loj (kom phim qhov sib txawv siab / qhov yuav tsum tau hloov chaw)
Fais fab thiab tsav txoj kev (diesel{0}}driven/electric drive system)
Hydraulic kawg cov khoom (alloy steel / stainless hlau / corrosion{0}}cov ntaub ntawv resistant)
Interface thiab installation txoj kev (skid-mounted/tsheb-mounted/modular)
Tswj system compatibility (tshaj nrog fracturing tsheb tswj system)
OEM hom thiab zoo li customization
Vim Li Cas Xaiv Peb
Stable khoom muaj peev xwm:Txhawb kev txiav txim ntau thiab kev koom tes ntev -.
Strong customization peev xwm:Npog qhov sib txawv ntawm qhov dej thiab qhov kev xav tau ntawm kev tsim kho.
Tswj tau zoo:Kev tswj nruj nruj ntawm cov khoom siv tseem ceeb thiab kev ua haujlwm.
Kev paub txog cov neeg siv khoom thoob ntiaj teb:Adaptable rau txawv oilfield qauv thiab kev khiav hauj lwm ib puag ncig.
FAQ
Q: Lub siab ua haujlwm siab tshaj plaws yog dab tsi?
A: Txog li ntawm 131 MPa (kwv yees li 19,000 psi), nyob ntawm qhov kev teeb tsa.
Q: Nws txhawb dab tsi media?
A: Nws tuaj yeem siv nrog dej, cov kua dej tawg, tshuaj khib- muaj cov kua qaub, kua qaub, thiab cov cement slurry.
Q: Nws puas txhawb nqa kev hloov pauv txawv?
A: Yog, nws tuaj yeem ua tiav los ntawm kev hloov lub plunger txoj kab uas hla.
Q: Nws puas siv tau nrog cov khoom siv uas twb muaj lawm?
A: Yog, nws txhawb kev cuam tshuam nrog cov tsheb thauj khoom loj thiab kev tswj hwm.
Q: Puas yog nws tsim nyog rau kev ua haujlwm tas mus li?
A: Haum rau ntev - lub sij hawm, siab - thauj khoom tas mus li.
