Taw qhia

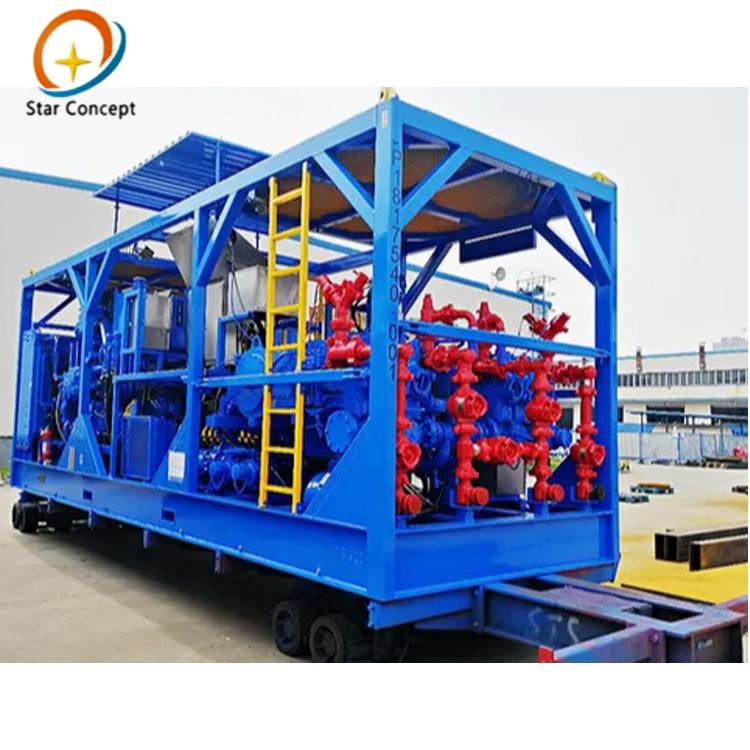

Acidizing Pump Skid yog ib qho skid -mounted siab- lub siab twj tso kua mis tsim los rau cov roj thiab roj zoo acidizing kev ua haujlwm, muab cov kua qaub zoo thiab txhim khu kev qha rau cov tuam txhab kev pabcuam oilfield thiab cov neeg ua haujlwm drilling.
Parameters thiab Specifications
|
Cav |
CAT C15 540 hp Los yog CAT C13 475 hp |
|
Kev sib kis |
TIAB SA 4700 |
|
Plunger Pump |
TPH400(3 3/8", 4", 4 1/2") |
|
Kev them nyiaj yug centrifugal twj tso kua mis |
SERVA 5X6 |
|
Tswj System |
Manual / Auto Control (nrog cov chaw taws teeb tswj qhov kev xaiv xaiv) |
|
Max. Tshem Tawm Siab |
103.4 MPa (15,000 psi) |
|
Max. Tus nqi tso tawm |
1.52 m³ / min (TPH 400 4 1/2") |
|
Zuag qhia tag nrho Dimensions (L x W x H) |
6,200 X 2,100 X 2,800 mm |
|
Qhov hnyav |
13,000 Kg |
|
Ua haujlwm kub ntau |
-20ºC~+50ºC |
Nta
Skid-mounted integrated tsim:Compact qauv, me me hneev taw, yooj yim rau thauj thiab sai sai deploy ntawm qhov chaw.
High-siab, siab- ntim tawm:Ua tau raws li qhov yuav tsum tau ua ntawm ntau cov txheej txheem acidification, txhim kho kev tsim kho kom zoo.
Corrosion{0}} tiv thaiv kab ke tsim:Cov kua dej tseem ceeb siv cov kua qaub- cov ntaub ntawv tiv taus, txuas cov cuab yeej siv lub neej.
Kev tswj ntse (yeem):Txhawb kev saib xyuas qhov ntsuas, ntsuas qhov yuam kev, thiab kev tswj chaw taws teeb.
Kev kho yooj yim:Modular qauv, yooj yim los soj ntsuam thiab hloov cov khoom.
Cov ntawv thov tseem ceeb
Roj thiab roj zoo matrix acidizing ua haujlwm; kev ua haujlwm tawg thiab acidizing; carbonate reservoir ntau lawm txhim kho kev kho mob; kev tu thiab tshem tawm cov dej hauv qhov dej; onshore thiab offshore oilfield kev pab cuam acidizing.
Peb Cov Kev Pabcuam
Ua ntej- Kev Muag Khoom:Customizes technical solutions thiab configuration designs; Muab cov ncauj lus kom ntxaws cov kev ntsuas thiab kev daws teeb meem.
Hauv -Kev Muag Khoom:Kev tsim khoom nruj thiab tswj kom zoo; Kev sim ua tiav thiab kev kuaj xyuas ua ntej ua zaub mov xa tuaj.
Tom qab-Kev Pabcuam Muag:Muab cov khoom seem txhawb nqa thiab kev saib xyuas; Muab cov lus qhia ua haujlwm ntev - cov khoom siv ua haujlwm kom zoo.
FAQ
Q: Dab tsi acids yog Acidizing Pump Skid haum rau?
A: Haum rau hydrochloric acid, pectin, thiab ntau yam acidizing kua tshuab. Corrosion-cov kev daws teeb meem tuaj yeem hloov kho kom tau raws li cov kev xav tau tshwj xeeb.
Q: Dab tsi yog qhov siab tshaj plaws ua haujlwm siab thiab hloov chaw?
A: Kev sib txawv siab thiab kev hloov pauv tuaj yeem hloov kho kom tau raws li qhov project xav tau.
Q: Nws puas txhawb nqa kev tswj hwm?
A: Yog, ib qho kev tswj tsis siv neeg thiab kev saib xyuas tej thaj chaw deb yog nyob ntawm yeem.
Q: Puas yog cov cuab yeej tsim nyog rau offshore platforms?
A: Yog, nws txhawb corrosion-tiv taus thiab tawg- qauv tsim, haum rau thaj chaw sab nrauv.
Q: Lub sijhawm khoom xa tuaj yog dab tsi?
A: Nyob ntawm kev teeb tsa, feem ntau nws yuav siv li ob peb lub lis piam mus rau ob peb lub hlis.
