Taw qhia

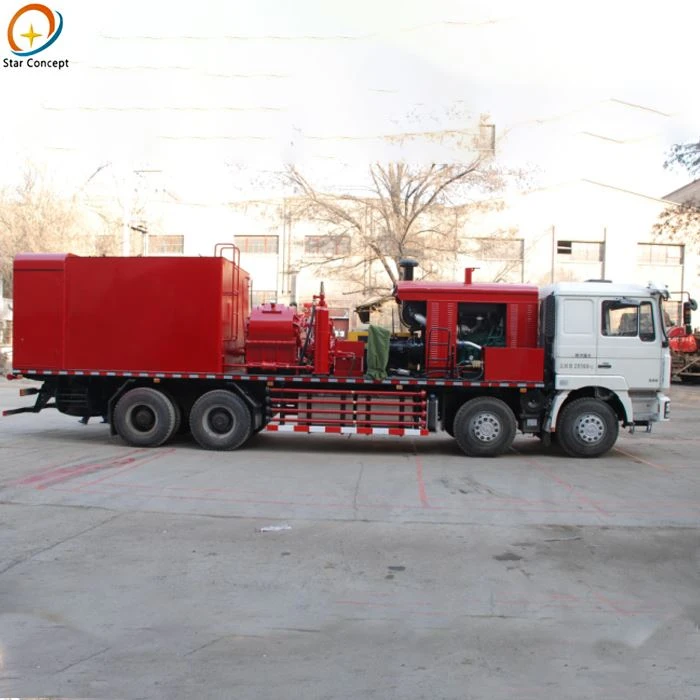

Lub Tsheb Tshem Tawm Wax yog lub tsheb tshwj xeeb ntawm cov roj av tsim los tshem tawm cov khoom siv paraffin siv lub siab - cov dej kub thiab chav dej, tsim nyog rau kev saib xyuas cov roj qhov dej thiab cov kav dej.
Parameter
|
Qeb |
Yam khoom |
Specification |
|
General |
Khoom npe |
Wax Tshem Tawm Truck |
|
Tsav hom |
8×4 |
|
|
Chassis Model |
SX1316NR466 |
|
|
Cav Qauv |
WP10.336E40 |
|
|
Lub cav fais fab |
360 kW (489 hp) |
|
|
Zuag qhia tag nrho Dimensions |
12000 × 2500 × 3620 hli |
|
|
Qhov hnyav |
28, 430 Kg |
|
|
Qhov hnyav tag nrho |
28.560 Kg |
|
|
Max Ceev |
110 km / h |
|
|
Ntxuav System |
Txias Txias Siab |
60 MPa |
|
Kub Ntxuav Siab |
20 MPa |
|
|
Txias Txias Flow Rate |
80 m³/h |
|
|
Kub Ntxuav Flow Rate |
20 m³/h |
|
|
Max qhov hluav taws xob kub |
160 degree |
|
|
Pump System |
Pump Model |
XJⅢ Triplex Plunger Pump |
|
Max input zog |
145 kW tsi |
|
|
Plunger Txoj kab uas hla |
φ100 hli |
|
|
Mob stroke |
135 hli |
|
|
Max Ceev |
280rpm ua |
|
|
Boiler System |
Hom |
Direct -ntaub hau Boiler |
|
Thermal zog |
1000-1300 kW |
|
|
Ua Haujlwm Siab |
20 MPa |
|
|
Hom roj |
Diesel |
|
|
Kev siv roj |
33.7-109.6 kg / h |
|
|
Cia System |
Dej Tank Capacity |
4000 L |
|
Roj Tank Peev Xwm |
650 L |
|
|
Pipeline System |
Suction yeeb nkab |
φ108 hli |
|
Cov yeeb nkab tawm |
φ50 hli |
|
|
Qauv |
Ncej Khoom |
Siab -lub zog steel welded qauv |
|
Compressive zog |
Ntau dua lossis sib npaug li 600 MPa |
|
|
Kev Pabcuam Lub Neej |
8-10 xyoo |
|
|
Tswj System |
Hom kev ua haujlwm |
Cabin centralized tswj |
|
Tswj hom |
Phau ntawv / PLC xaiv tau |
Nta ntawm Wax Tshem Tawm Truck
High -Ntsuj Siab Ntxuav System
Lub Tsheb Tshem Tawm Tsav Tsheb muaj peb lub- lub tog raj kheej plunger twj tso kua mis configuration, xa qhov siab tshaj plaws ntawm 60 MPa thiab tus nqi ntws ntawm 80 m³ / h, ua kom tshem tawm sai ntawm siab - hardness paraffin txheej hauv cov kav dej.
High -Tsub Cuab Yeej Cuab Yeej
Nruab nrog 18-1300 kW ncaj qha- raug rho tawm haujlwm boiler, nws ua tiav qhov siab tshaj plaws tso zis kub ntawm 160 degree, kom ntseeg tau tias cov quav ciab tseem nyob hauv lub xeev tsis tu ncua molten, txawm tias nyob rau hauv qis - qhov kub thiab txias oilfield ib puag ncig.
Dual{0}}Mod Kub/Cold Switching System
Txhawb seamless hloov ntawm ob hom sib txawv -60 MPa dej txias thiab 20 MPa kub ntxuav-kom tau txais txiaj ntsig zoo rau cov xwm txheej sib txawv uas muaj cov tuab sib txawv.
Kev kho kom haum
|
Yam khoom |
Kev piav qhia |
|
Chassis Configuration |
6 × 4 lossis 8 × 4 hnyav- cov qauv chassis muaj rau xaiv. |
|
Cua sov System Fais fab |
Boiler tso zis tuaj yeem teeb tsa los ntawm 400 kW txog 1300 kW raws li paraffin tshem tawm kev siv zog. |
|
Siab -Npaum Pump Parameters |
Plunger twj tso kua mis siab ntau tuaj yeem hloov kho los ntawm 35-60 MPa kom phim ntau theem ntawm cov kav dej thaiv. |
|
Tank & Fluid Storage System |
Customizable 4000 L dej tank lossis cov qauv muaj peev xwm loj dua muaj nyob rau kom ua tau raws li qhov ntev - lub sijhawm ua haujlwm. |
|
Tswj System |
Optional cab-kev tswj hwm lossis PLC tsis siv neeg tswj tshuab muaj los txhim kho kev ua haujlwm zoo. |
|
Piping & Txhaj Qauv |
High-cov hoses siab, lub kaum sab xis ntawm lub taub hau, thiab tiv thaiv -cov qauv tsim qauv tuaj yeem raug kho raws li qhov xav tau qhov tob tob. |
FAQ
Q: Kuv puas tuaj yeem coj mus ncig virtual ntawm koj lub Hoobkas?
A: Muaj tseeb. Peb tuaj yeem qhia koj txog peb cov kev cob qhia, warehouses, thiab chaw ua haujlwm ntawm video.
Q: Cov nqe lus them nqi rau Wax Removal Truck yog dab tsi?
A: Peb feem ntau xav tau 30% nqes them ua raws li qhov seem 70% ua ntej xa khoom xa tuaj; Kev them nyiaj los ntawm Letter of Credit (L/C) kuj tau txais.
Q: Yam kev lag luam twg koj txhawb nqa?
A: Peb tuaj yeem muab cov lus hais raws li kev lag luam thoob ntiaj teb xws li FOB, CIF, thiab CFR, ua kom yooj yim rau kev lis kev cai thiab kev xa khoom rau cov neeg tuaj txawv teb chaws.
Q: Yam tsawg kawg nkaus Order Quantity (MOQ) yog dab tsi?
A: MOQ yog ib chav; peb lees txais ob qho tib si -unit purchases and bulk orders.
Q: Lub sijhawm khoom xa tuaj yog dab tsi?
A: Lub voj voog txheej txheem yog 30-45 hnub; lub sijhawm caij nyoog yuav txawv me ntsis nyob ntawm qhov tshwj xeeb configuration thiab customization yuav tsum tau.
Q: Lub thawv ntim thiab thauj khoom li cas?
A: Lub tsev yog tag nrho tiv thaiv qhwv los yog xa tawm raws li ib qho chaw liab qab nrog kev siv tshuaj tiv thaiv - xeb. Nws tsim nyog rau kev thauj mus los ntawm Ro-Ro (Roll-on/Roll-tawm) cov nkoj lossis cov thawv ntim khoom txheem.
Q: Puas yog chav kuaj kuaj ua ntej tawm hauv lub hoobkas?
A: Lub Tsheb Tshem Tawm Wax tau dhau los ua qhov kev ntsuam xyuas ua ntej xa khoom xa tuaj, suav nrog kev txheeb xyuas ntawm qhov siab -siab system, cua sov system, thiab chassis kev ua haujlwm.
Q: Lub sijhawm lav yog dab tsi?
A: Peb muab 12-hli warranty ntawm cov khoom tseem ceeb, npog lub twj tso kua mis, lub tshuab boiler, thiab kev tswj xyuas.
Q: Lub hauv paus ntsiab lus ua haujlwm ntawm Wax Removal Truck yog dab tsi?
A: Lub Tsheb Tshem Tawm Tsav Tsheb siv lub siab - lub twj tso kua mis siab kom xa cov khoom siv ntxuav, ua ke nrog siab - cua kub cua sov, kom soften wax deposits hauv cov kav dej rau tom qab yaug thiab tshem tawm.
Q: Dab tsi ntawm cov ntaub ntawv ntxuav tu tau sib haum nrog lub tsev?
A: Lub tsev tuaj yeem ua cov dej huv, dej kub, thiab tsis yog -cov kua dej huv huv, ua rau nws tsim nyog rau kev ua haujlwm hauv cov kav dej thiab roj av.
Q: Lub tsev puas xav tau kev teeb tsa?
A: Lub Tsheb Tshem Tawm Tshem Tawm yog xa raws li lub tsheb sib dhos, ua tiav. Thaum tuaj txog ntawm qhov chaw, nws tsuas yog yuav tsum tau kuaj xyuas yooj yim ua ntej muab tso rau hauv kev ua haujlwm tam sim; tsis muaj cov txheej txheem installation nyuaj yuav tsum tau ua.
Daim ntawv pov thawj
Peb lub tuam txhab tau txais API Q1 daim ntawv pov thawj thiab kev tso cai siv API Monogram, thiab tau ua tiav daim ntawv pov thawj ISO 9001, ISO 14001, thiab ISO 45001 cov ntawv pov thawj.
